Genzler Magellan MG-800+ | 800 Watt Bass Amp

$1,199.99

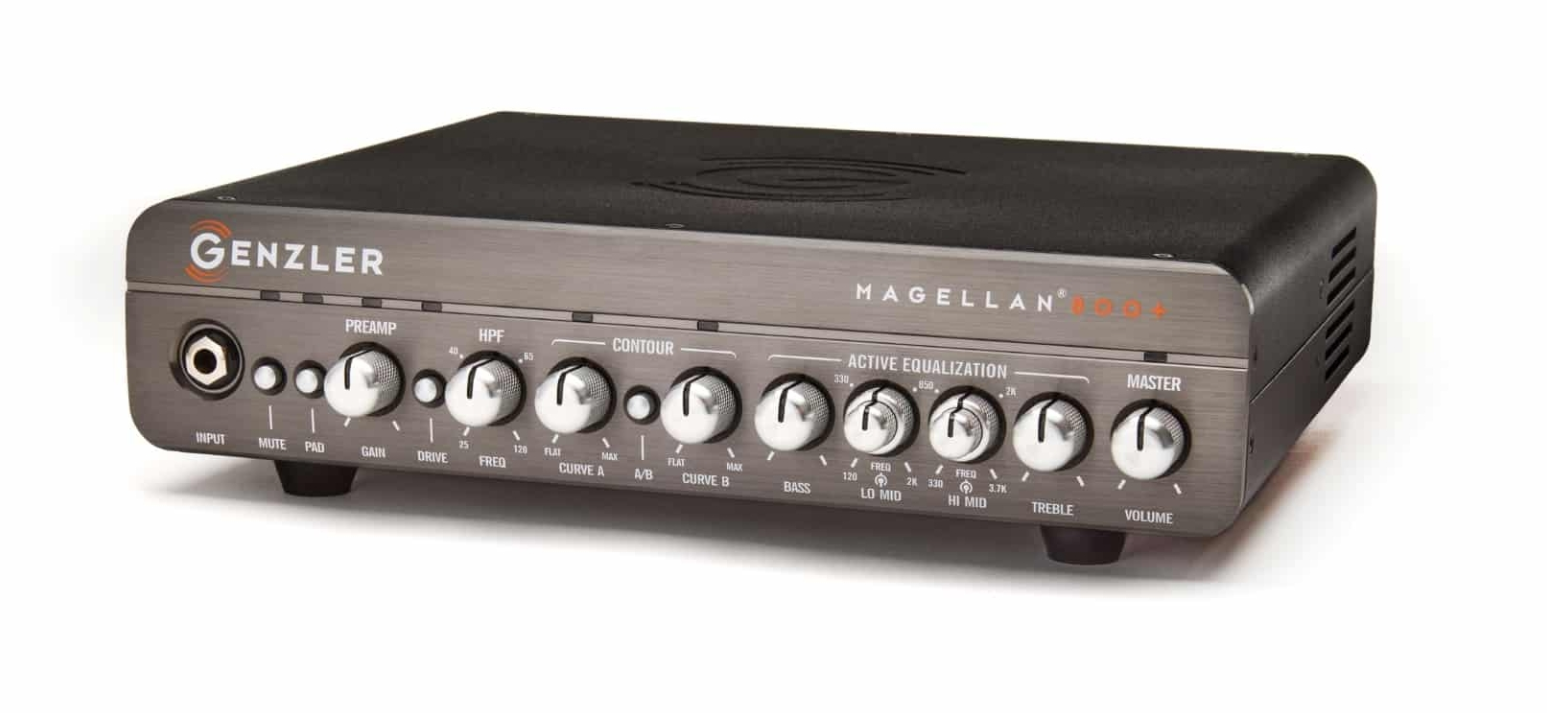

The Genzler Magellan 800+ is the next generation of Genzler's acclaimed Magellan bass amplifier, delivering 800 watts of professional, tour-class power in an incredibly lightweight 6.25-pound package. The all-analog, solid-state design provides a wide tonal palette ranging from pristine, transparent reproduction to rich vintage-inspired harmonic textures, while the updated input circuitry delivers improved dynamics, lower noise, and increased headroom. Housed in a rugged, aircraft-grade aluminum chassis, the Magellan 800+ is built for demanding players who need exceptional tone and reliability without the weight of a traditional high-powered bass head.

The Magellan 800+ adds several significant improvements over the original Magellan 800, including a foot-switchable DRIVE circuit, variable 25–120Hz high-pass filter, and Genzler's Dual Contour Circuit with independently adjustable Classic-to-Modern and Thicker-to-Vintage curves. Its 4-band active EQ includes two sweepable midrange sections for precise tonal shaping, while the rear panel provides dual Speakon outputs, effects loop, tuner output, headphone output, and switchable pre/post direct output. With a universal 100–240V power supply and output capability of 400 watts at 8 ohms and 800 watts at 4 or 2.67 ohms, the Magellan 800+ is ready for stages anywhere in the world.

The Genzler Magellan 800+ is the next generation of Genzler's acclaimed Magellan bass amplifier, delivering 800 watts of professional, tour-class power in an incredibly lightweight 6.25-pound package. The all-analog, solid-state design provides a wide tonal palette ranging from pristine, transparent reproduction to rich vintage-inspired harmonic textures, while the updated input circuitry delivers improved dynamics, lower noise, and increased headroom. Housed in a rugged, aircraft-grade aluminum chassis, the Magellan 800+ is built for demanding players who need exceptional tone and reliability without the weight of a traditional high-powered bass head.

The Magellan 800+ adds several significant improvements over the original Magellan 800, including a foot-switchable DRIVE circuit, variable 25–120Hz high-pass filter, and Genzler's Dual Contour Circuit with independently adjustable Classic-to-Modern and Thicker-to-Vintage curves. Its 4-band active EQ includes two sweepable midrange sections for precise tonal shaping, while the rear panel provides dual Speakon outputs, effects loop, tuner output, headphone output, and switchable pre/post direct output. With a universal 100–240V power supply and output capability of 400 watts at 8 ohms and 800 watts at 4 or 2.67 ohms, the Magellan 800+ is ready for stages anywhere in the world.

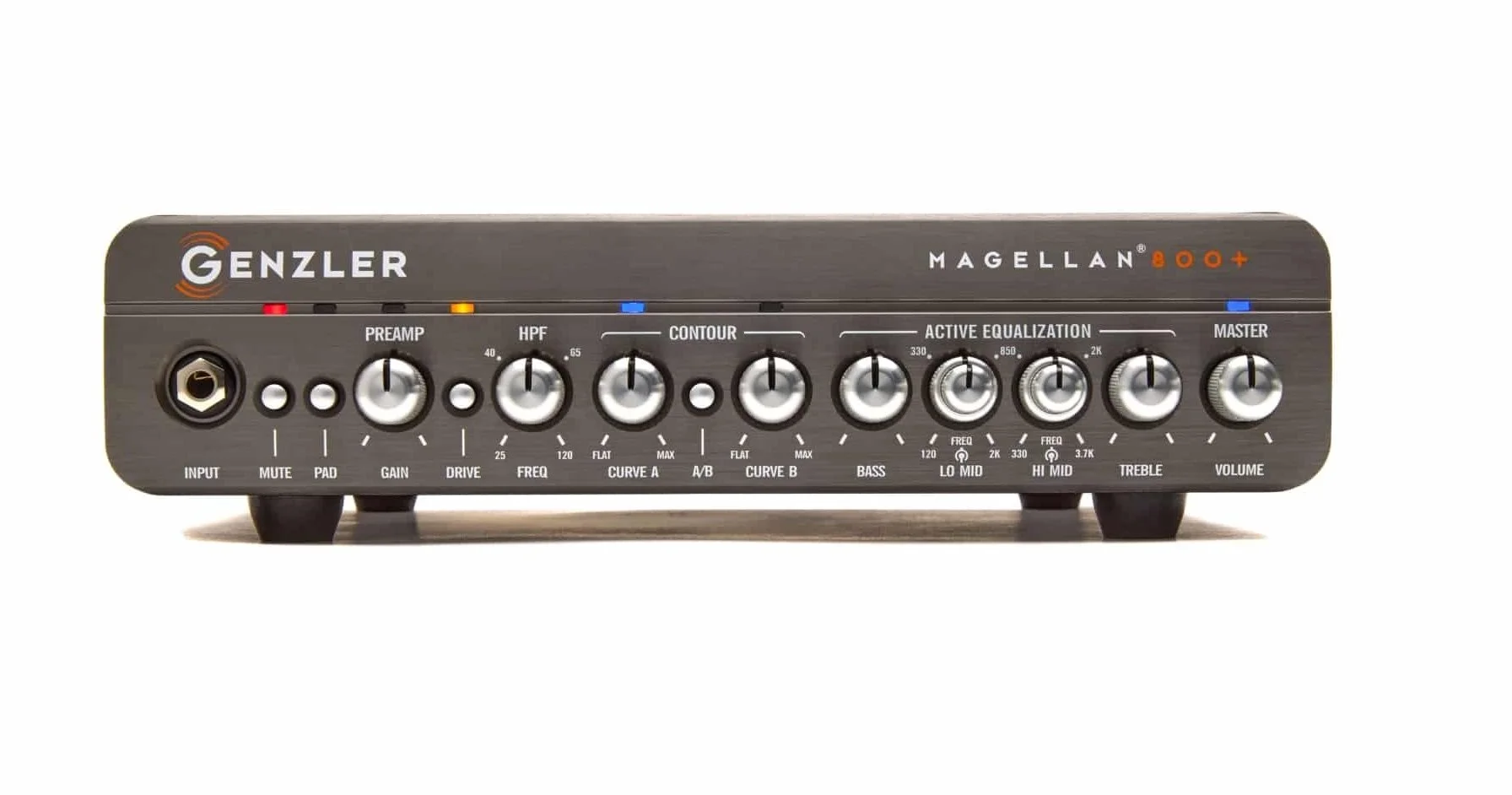

FRONT PANEL FEATURES:

  • ¼” INPUT

  • SIGNAL MUTE SWITCH

  • INPUT PAD (- 8.5dB)

  • GAIN LEVEL CONTROL

  • DRIVE CHANNEL SWITCH — Voiced for a Driven Tonal Signature and Harmonic Texture, Controlled by Gain Level Control & Master Volume

  • HPF—HIGH PASS FILTER — Variable from 25 – 120Hz

  • DUAL-CURVE VARIABLE CONTOUR CIRCUITRY — Footswitchable

    • Curve A — Classic to Modern — Smooth Mid Scoop Curve w/Increased Lows & Highs

    • Curve B — Thicker to Vintage — Low-Mid Bump w/Tapered Top End

    • Flat Position — Full Bypass

  • ACTIVE 4 BAND EQ w/2 PARAMETRIC MID CONTROLS

  • Bass:         +/- 15dB @ 75Hz

  • Lo Mid:     +/- 15dB variable from 120Hz – 2K Hz

  • High Mid: +/- 15dB variable from 330Hz – 3.7K Hz

  • Treble:       +/- 15dB @ 6K Hz

  • MASTER VOLUME CONTROL

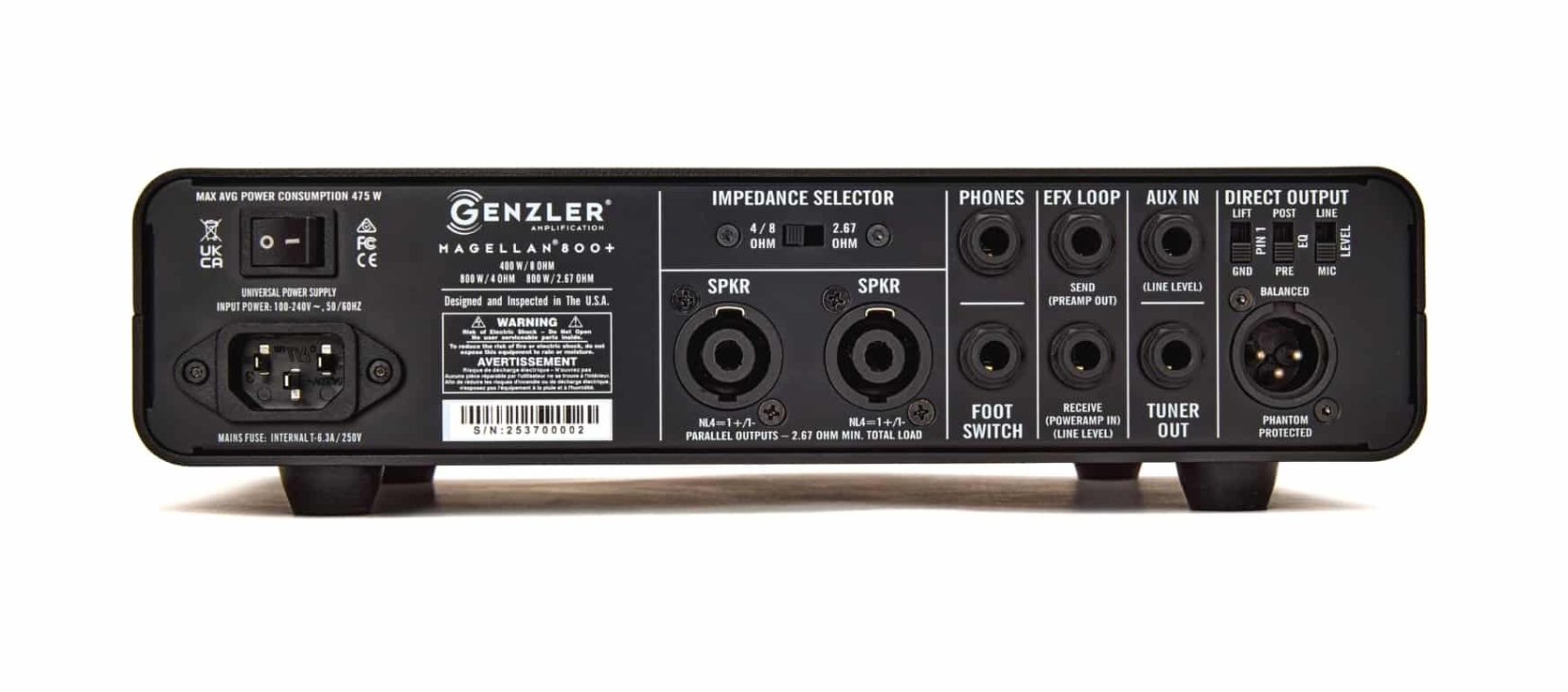

REAR PANEL FEATURES —-

  • IMPEDANCE SELECTOR SWITCH — 8/4 ohm to 2.67 ohms

  • DUAL SPEAKON® SPEAKER OUTPUTS

  • HEADPHONE OUTPUT

  • FOOTSWITCH INPUT JACK — For optional 2 button footswitch

  • EFFECTS LOOP

  • TUNER OUTPUT JACK

  • DIRECT OUTPUT INTERFACE — PRE/POST

  • THERMAL SENSING VIARIABLE SPEED FAN COOLING

  • AIRCRAFT-GRADE, ALL ALUMINUM CHASSIS w/EXTRUDED ALUMINUM FRONT PANEL

  • POWER AMPLIFIER — State of the art, Class D power amplifier and high frequency auto-sensing universal switch-mode power supply. Auto senses line voltage from 100 – 240 Vots

SPECIFICATIONS:

  • POWER OUTPUT:  400W/8 Ohms, 800W/4 Ohms and 800W/2.67 Ohms

  • MINIMUM SPEAKER LOAD:  67 Ohms

  • OPERATING POWER CONDITION: 100 – 240V, 50/60 Hz

  • DIMENSIONS: 3”H X 11.25”W X 10.5”D

  • WEIGHT: 6.25 LBS
