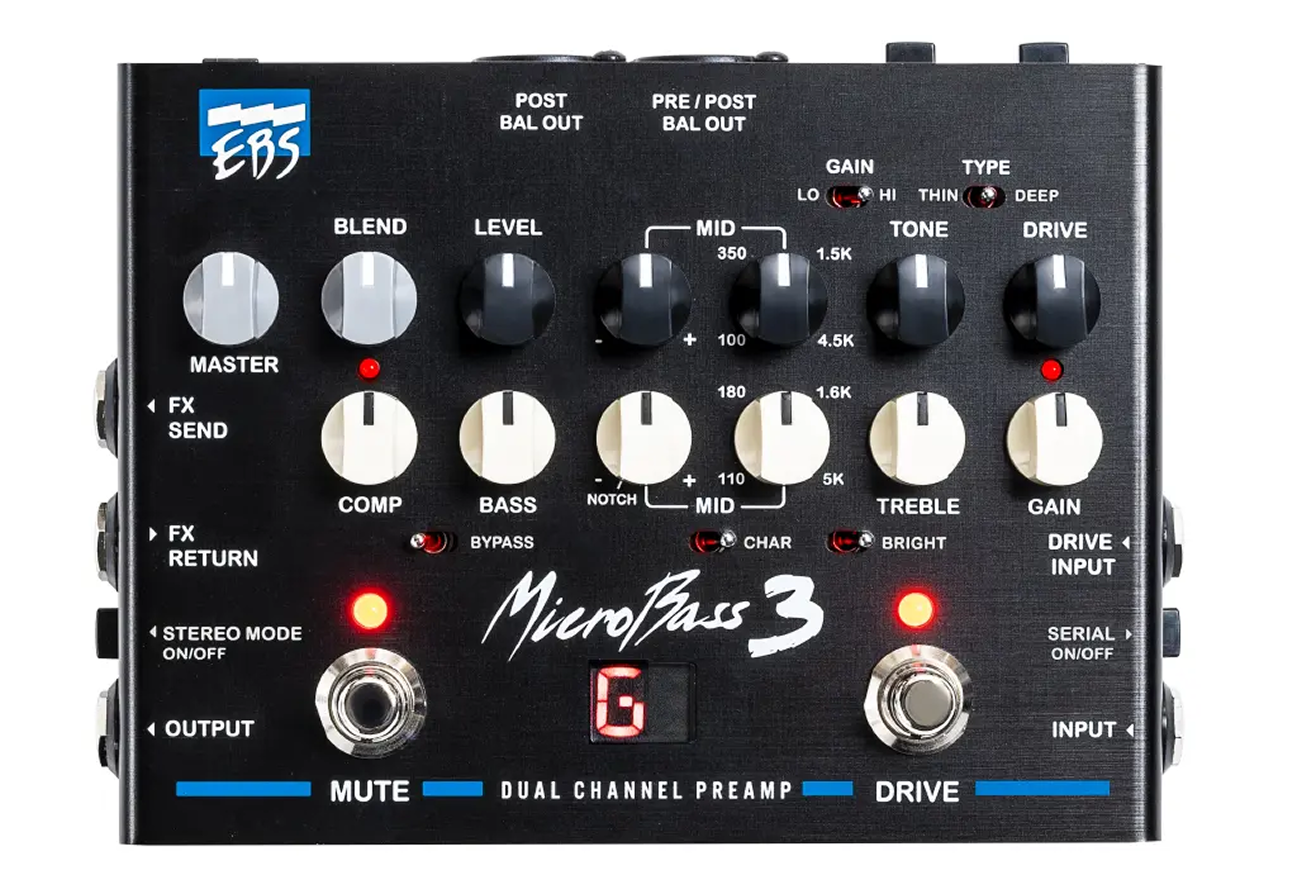

Clean Channel:
Input Impedance:
Parallel mode 1.5 Mohms, 44 pF; Serial mode 10 Mohms, 22 pF
Gain:
Gain Range min/max -∞ / +30 dB; Gain Peak LED +10 dBv
Frequency Response:
+0 / -3 dB 20 – 20,000 Hz
Character:
Filter Type Shelving High/Low Pass; Gain: Lo +6 dB @ 80 Hz, Mid -2 dB @ 900 Hz, Hi +3 dB @ 7.5 kHz
Bright:
Filter Type Shelving; Gain: +10 dB @ 10 kHz
Filter Section:
Bass Filter: Type 12 dB/oct. Shelving, Gain Range +/- 18 dB @ 60 Hz;
Middle Filter: Type Bandpass Filter, Frequency Range 50 – 5,000 Hz, Q – Boost 0.5 – 1.3, Q – Cut 0.5 – >5, Gain Range +/- 12-15 dB;
Treble Filter: Type Shelving, Gain Range +/- 18 dB @ 8 kHz
Comp/Limit:
Comp Gain 0 dB, Attenuation max 24 dB, Compression Ratio max 3:1, Attack (80%) typ <10 ms, Release (80%) typ 100 ms
Drive Channel:
Input Impedance:
1.8 Mohms, 22 pF
Drive:
Gain Range 40 dB
Engines:
Lo: Type 2nd harmonics soft;
Hi: Type Symmetrical 2-stage with +18 dB gain
Drive type:
Thin/Normal/Deep Pre Drive EQ
Filter Section:
Tone Filter: Type 6 dB/oct. Low Pass, Frequency Range 700 – 20k Hz;
Middle Filter: Type Bandpass Filter, Frequency Range 100 – 4,500 Hz, Q 1.2, Gain Range +/- 15 dB

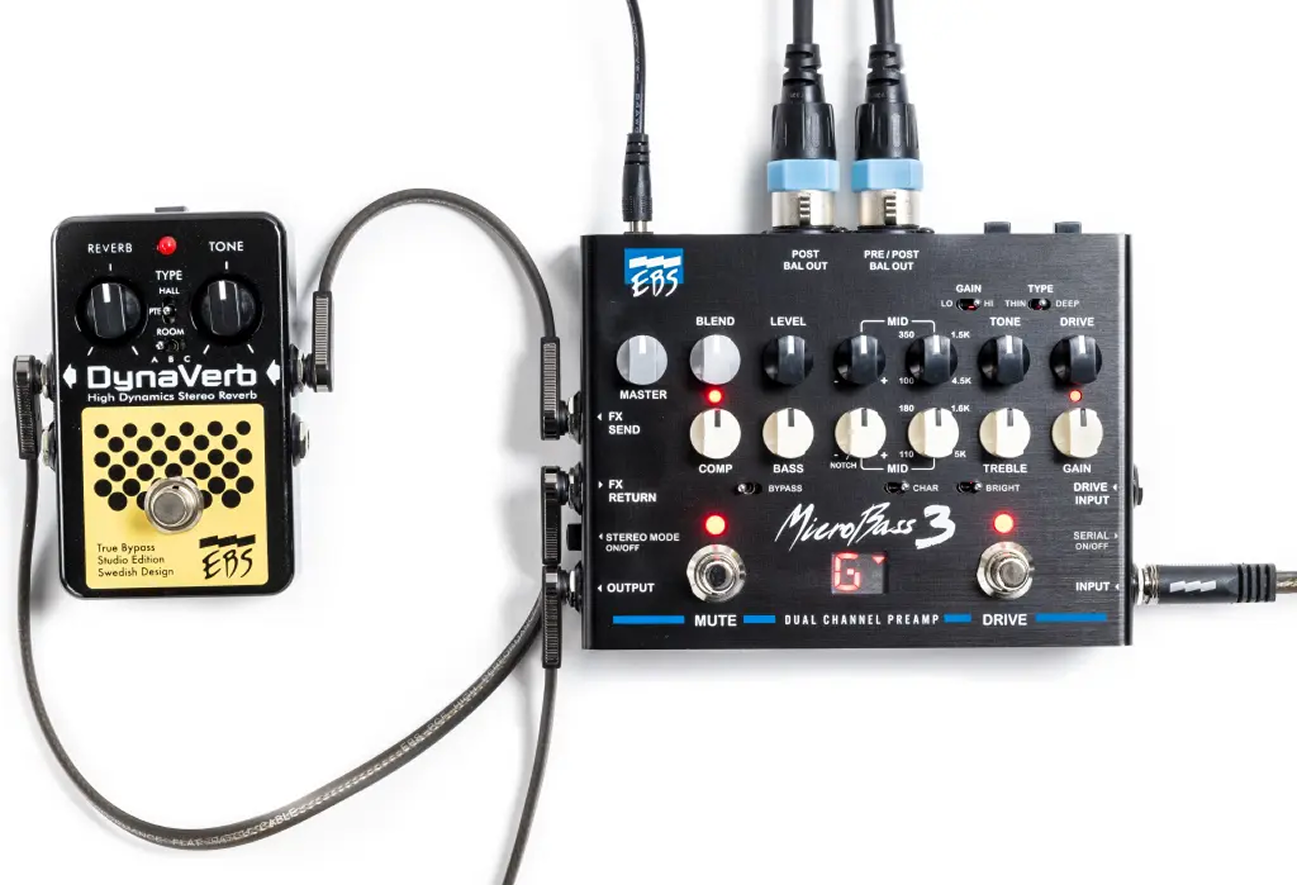

Effects Loop
Loop Signal Level nominal -10 dBv, Gain Unity (1:1), Output Impedance <100 ohms, Input Impedance >200 kohms, 22 pF
Phones Out
Recommended Impedance 32 – 200 ohms
Aux Input
Input Impedance 20 kohms, Nominal Level -10 dBv
Output
Output Impedance <1 kohms, Signal Level nominal 0 dBv

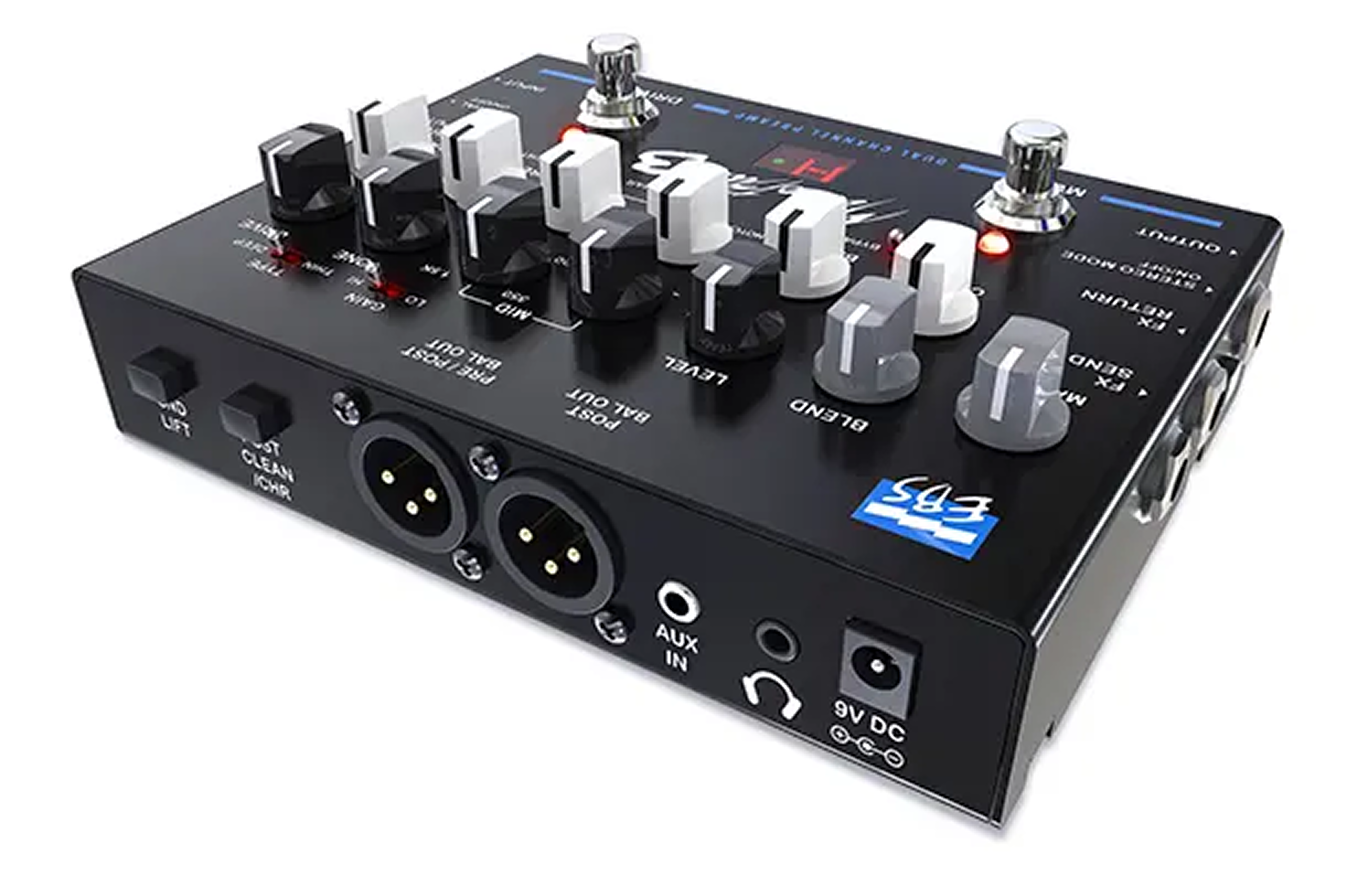

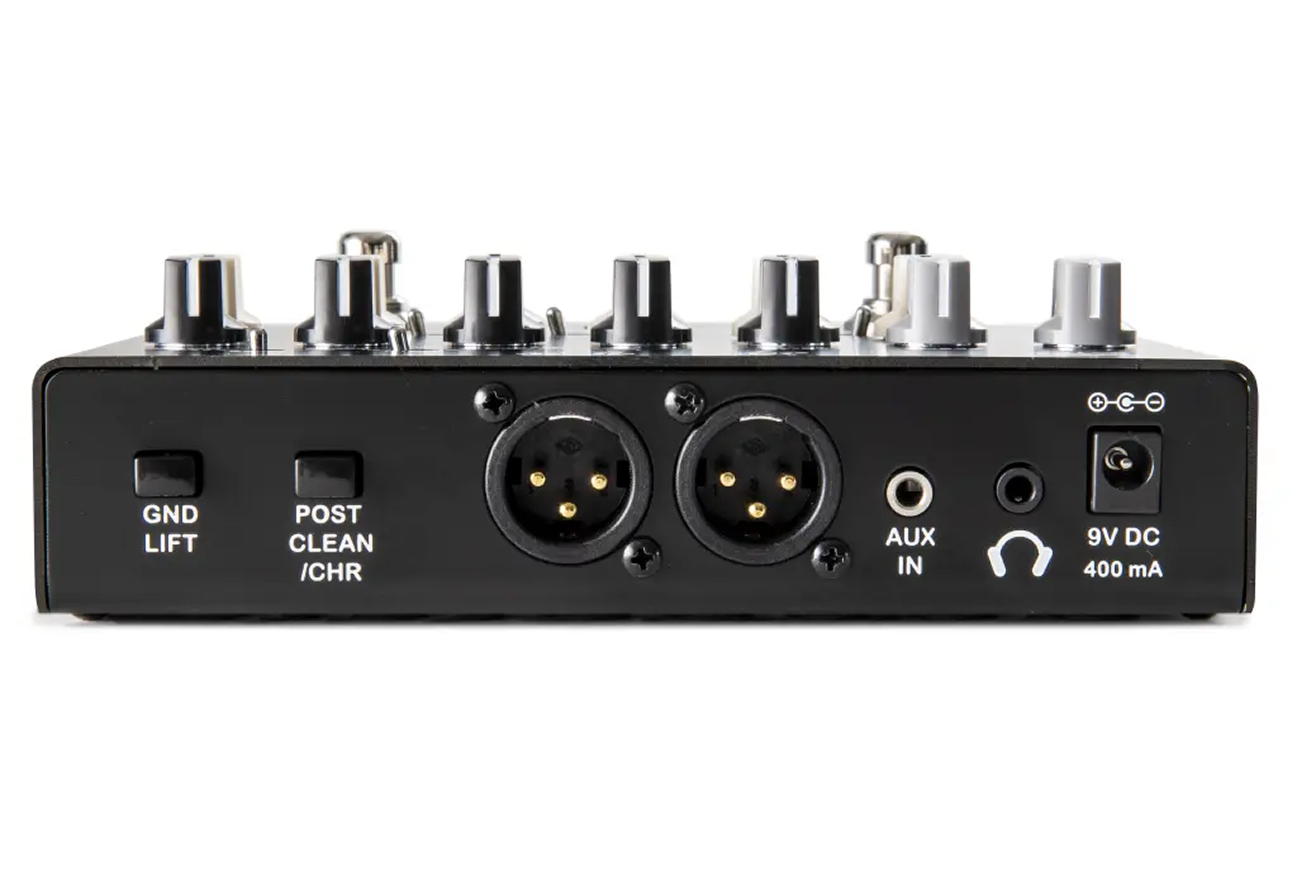

Balanced Outputs
Output Level nominal -20 dBv, XLR Connections 1-GND, 2-Hot, 3-Cold, Options Pre/Post EQ, L/R Ch. in stereo mode
Auxiliary Info
Power Requirements Idle 450mA @ 9V, Max 750mA @ 9V (with headphones at max output level)
Dimensions (WxDxH)
max 168 x 124 x 53 mm / 6.6″ x 4.9″ x 2.1″
Weight
1.5 lbs.
